Description

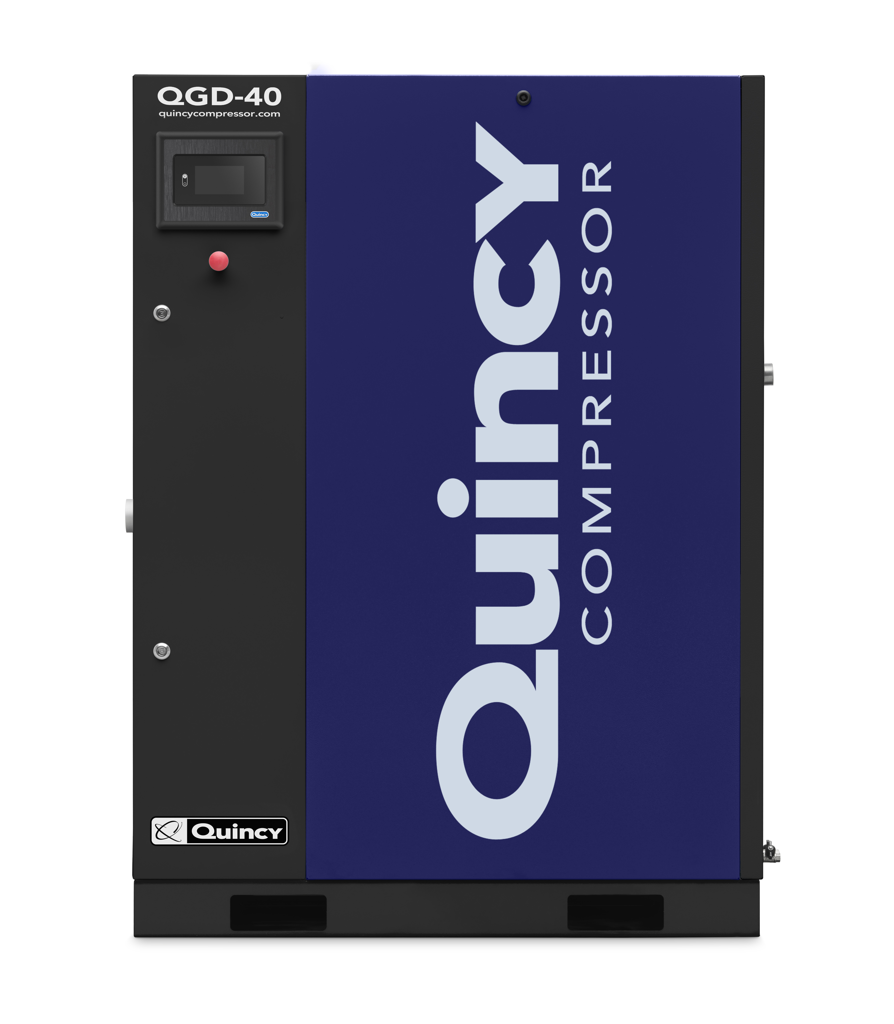

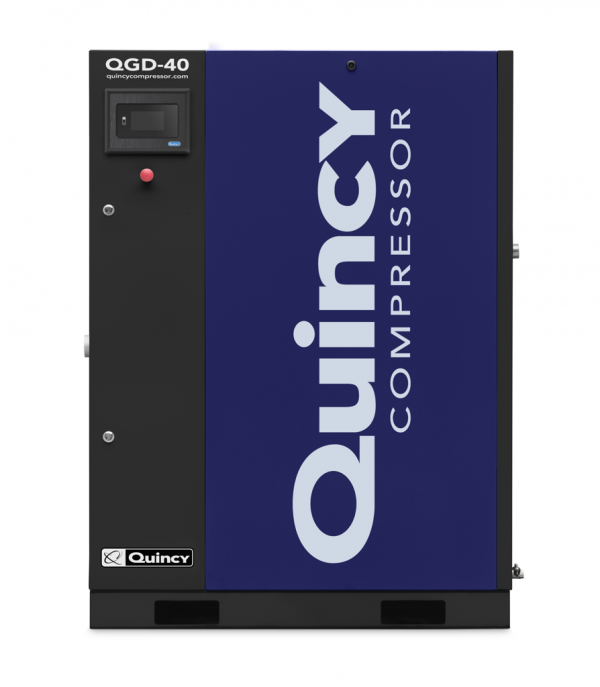

Quiet Enclosed 50 HP Floor Mounted Air Cooled Rotary Screw Air Compressor; 230/460 Volt, 3 Phase

Direct Coupled.  No Belts!

Standard Premium Features:

• Manufacturer’s 5-Year True Blue Warranty
• TEFC Drive Motor
• TEFC Fan Motor
• Extended Service Intervals – 4,000 hour fluid filter; 8,000 hours separator
• Factory-filled 8,000 hour QuinSyn-Plus Fluid
• NEMA 4 Electrical Rating
• Low Sound Enclosure – Super Quiet Operation
• Wye Delta Reduced Voltage Starter
• Small Footprint
• Package Pre-filter
• Heavy Duty Intake Filter
• Airlogic 2 Advanced Intelligent Controller with Color Display
• Online Visualization Capability
• Premium efficiency – high cfm per HP

Specifications:

• HP 50 hp
• Flow (ACFM) 229.7
• Full Load Pressure (PSIG) 125
• Max Pressure (PSIG) 132
• Package Discharge Size 1-1/2″ NPT
• Max Ambient 115 ºF
• Min Ambient 32 ºF
• Fluid Capacity 5.3 gal
• Sound 67 dBA
• Weight (Lbs.) 1536
• Dimentions (LxWxH) 52.1 x 35 x 70.5

True Blue Warranty

Only the World’s Finest Compressors come with and industry leading warranty!  Quincy Compressor offers 5-year coverage, True Blue Warranty*

Other companies say they offer the best machine, but only Quincy can prove it.  We back our most reliable air compressor with an industry leading warranty….

• 5-year Airend Warranty
• 5-year Drive Motor
• 5-year Heat Exchanger
• 5-year Separator Tank

*Note:  Refer to the Instruction Manual and the Warranty Policy Statement for a full list of recommended service intervals and requirements.
